Model : DY-5H
Capacity : 5000
Heating power : 50
Weight(kg) : 1500
Power(kw) : 11.58
Dimension (L*W*H/mm) : 2560*2560*4500
Crafted with precision, this Grain Paddy Dryer Machine / Rice Milling Machine Line features stainless steel construction for all parts that come into contact with raw materials, including the barrel, screw blade, shaft, and tank. Its innovative two-level spiral quick delivery system ensures efficient material handling. The first level rapidly delivers materials into the barrel, while the second level continuously lifts them, scattering them as hot air is blown from the center. This dynamic process ensures comprehensive heat transfer and drying, with materials continuously mixing and drying simultaneously for optimal time and energy savings.
| Model | Capacity (kg/batch) | Heating Power (kW) | Weight (kg) | Power (kW) | Dimension (L*W*H/mm) |
|---|---|---|---|---|---|
| DY-0.5H | 500 | 13 | 550 | 3.37 | 1000*1000*2170 |
| DY-1H | 1000 | 14 | 750 | 4.37 | 1250*1250*2500 |
| DY-2H | 2000 | 35 | 950 | 8.11 | 2000*2000*3100 |
| DY-4H | 4000 | 47 | 1100 | 10.48 | 2200*2200*4100 |
| DY-5H | 5000 | 50 | 1500 | 11.58 | 2560*2560*4500 |
|
|

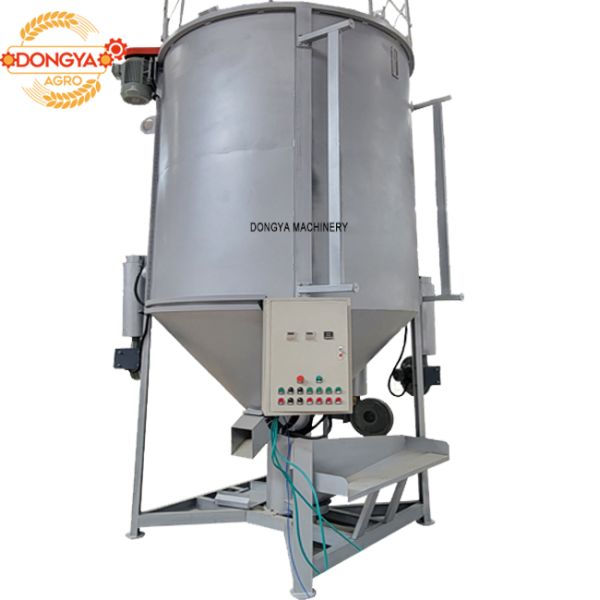

grain paddy rice corn maize bean wheat Parboiled Rice Drying Machine electric type Images |
